End seals for the sealing of pipeline ends

AKWEDUKT end seals are made of elastomer material and formed via injection moulding. Apart from being highly elastic, elastomers are able to absorb vibrations, are light, durable and resistant to various harmful effects such as significant fluctuation of temperature. End seals are used to seal off any spaces between the carrier pipe and the casing pipe (e.g. in pipe passages under roads).

Because of their high material durability and elasticity, end seals are able to compensate thermal expansion of pipelines without compromising the tightness of the seal between pipes, therefore they can be used in all types of pipes (steel, cast iron, plastic, pre-insulated pipes). End seals are held tightly against the pipe using clamps (bands) made of stainless steel.

Parameters of our end seals:
Made of:	elastomer
Prodaction method:	Injection moulding
Purpose:	closing and sealing of spaces inbetween pipes
Type of network:	water and sewage, gas, heating, industrial, telecommunications, fiber optic
Working pressure:	up to 5 meters of water column
Function:	prevent the migration of water, silt and gases along the pipeline
Fastening:	stainless steel bands

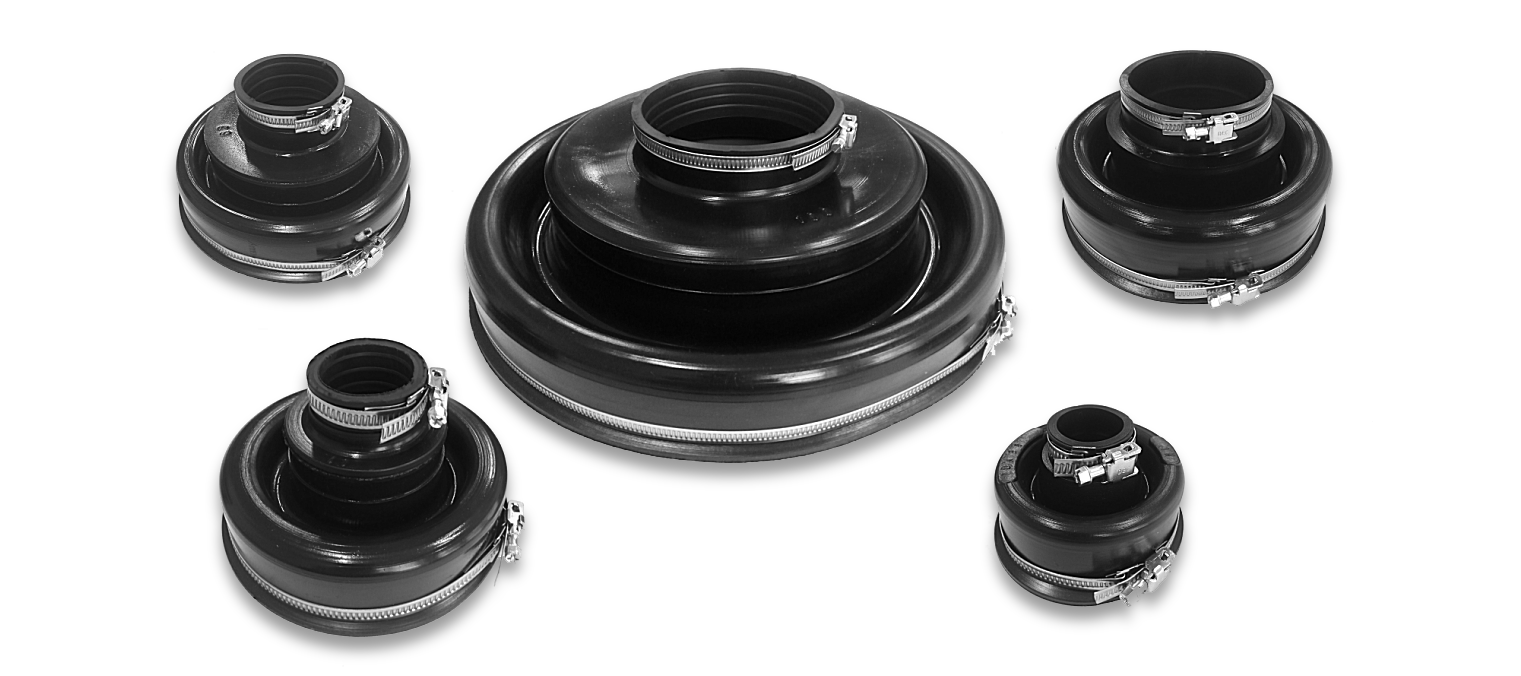

End seals type N

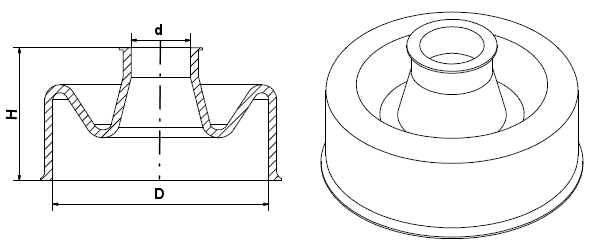

Cross section and view of end seal type N:

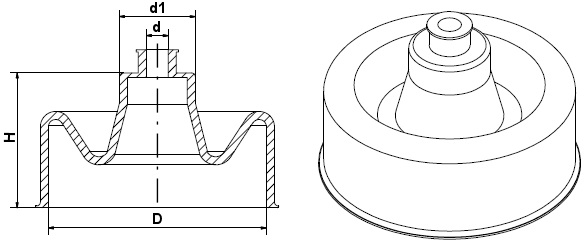

Stepped end seal N:

Dimensions of our end seals and their application:

	Nominal operational values of end seal in milimetres (+/- 5% due to the elasticity of seal)
Symbol	d[mm]	d1[mm]	D[mm]	Height [mm]
20/40	20		40	50
20/50	20		50	50
20/63	20		63	50
20/80	20		90	60
20/100	20		110	60
25/50	25		50	50
25/63	25		63	50
25/80	25		90	60
25/100	25		110	60
25/63/100	25	63	110	83
32/80	32		90	60
32/100	32		110	60
32/63/100	32	63	110	83
32/100/150	32	110	160	88
40/75	40		75	60
40/80	40		90	60
40/100	40		110	60
40/63/100	40	63	110	83
40/63/125	40	63	125	83
40/50/63/125	40	50-63	125	95
40/100/150	40	110	160	88
50/100	50		110	60
50/63/100	50	63	110	95
50/125	50		125	52
50/63/125	50	63	125	83
50/80/140	50	90	140	98
50/100/150	50	110	160	88
63/100	63		110	60
63/125	63		125	52
63/80/140	63	90	140	101
63/100/150	63	110	160	88
63/100/180	63	110	180	95
75/80/140	75	90	140	102
75/100/150	75	110	160	89
75/125/200X	75	125	200	100
75/150/200	75	160	219	100
80/140	90		140	74
80/100/150	90	110	160	89
80/180	90		180	93
80/125/200X	90	125	200	100
80/150/200	90	160	219	100
80/150/250X	90	160	250	100
80/200/300	90	223	323	100
100/150	110		160	60
100/180	110		180	93
100/125/200X	110	125	200	100
100/150/200	110	160	219	100
100/250X	110		250	75
100/150/250X	110	160	250	95
100/250	110		273	75
100/150/250	110	160	273	100
100/200/300	110	219	323	100
100/400	110		420	90
125/200X	125		200	80
125/150/200	125	160	219	100
125/150/250X	125	160	250	95
125/250	125		273	75
125/150/250	125	160	273	100
140/150/250X	140	160	250	95
150/200X	160		200	100
150/200	160		219	80
150/250X	160		250	70
150/250	160		273	75
150/200/300	160	219	323	100
150/350	160		355	95
150/400	160		420	90
180/200X/250	180	200	273	100
180/200/300	180	219	323	100
200X/250	200		273	75
200X/200/300	200	219	323	100
200X/350	200		355	95
200X/400	200		420	90
200X/450	200		450	85
200X/500	200		508	108
200/300	219		323	70
200/350	219		355	95
200/400	219		420	90
200/450	219		450	100
250X/350	250		355	90
250X/400	250		420	90
250X/500	250		508	108
250/350	273		355	95
250/400	273		420	95
250/450	273		450	85
250/500	273		508	108
300/400	323		420	90
300/450	323		450	85
300/500	323		508	108
350/500	355		508	108
400/500	420		508	108
400/500/560	420	508	560	115
X - matching with PVC, PE pipes Other dimensions on request

Installation comprises the mounting of the seal on the casing pipe and moving of the carrier pipe into place. The joint is sealed via the tightening of stainless steel band clamps over the seal.

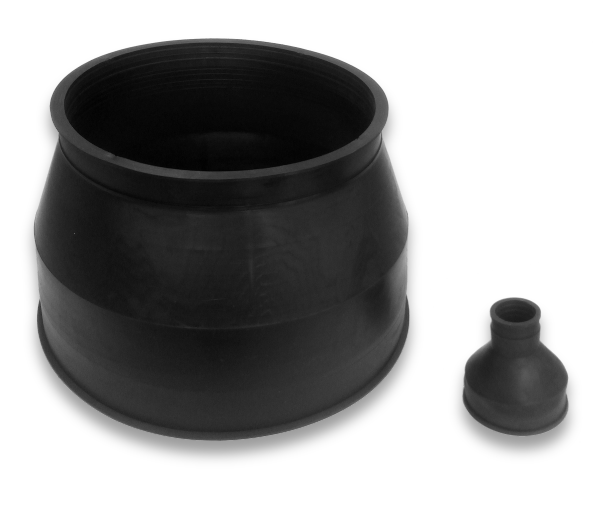

Straight end seals

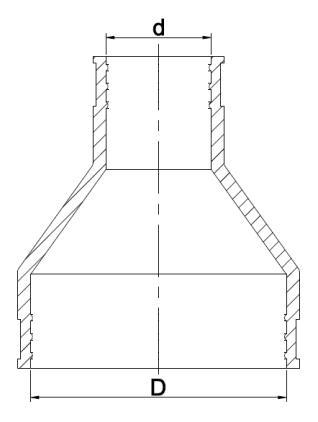

Cross section of straight end seal:

Straight end seals selection chart:

	Nominal operational values of end seal in milimetres (+/- 5% due to the elasticity of seal)
Symbol	d [mm]	D [mm]
20/50	20	50
20/75	20	75
25/50	25	50
32/63	32	63
32/75	32	75
50/80	50	90
63/80	63	90
250X/300	250	300
400/500	400	500
X -matching with PVC, PE pipes Other dimensions on request

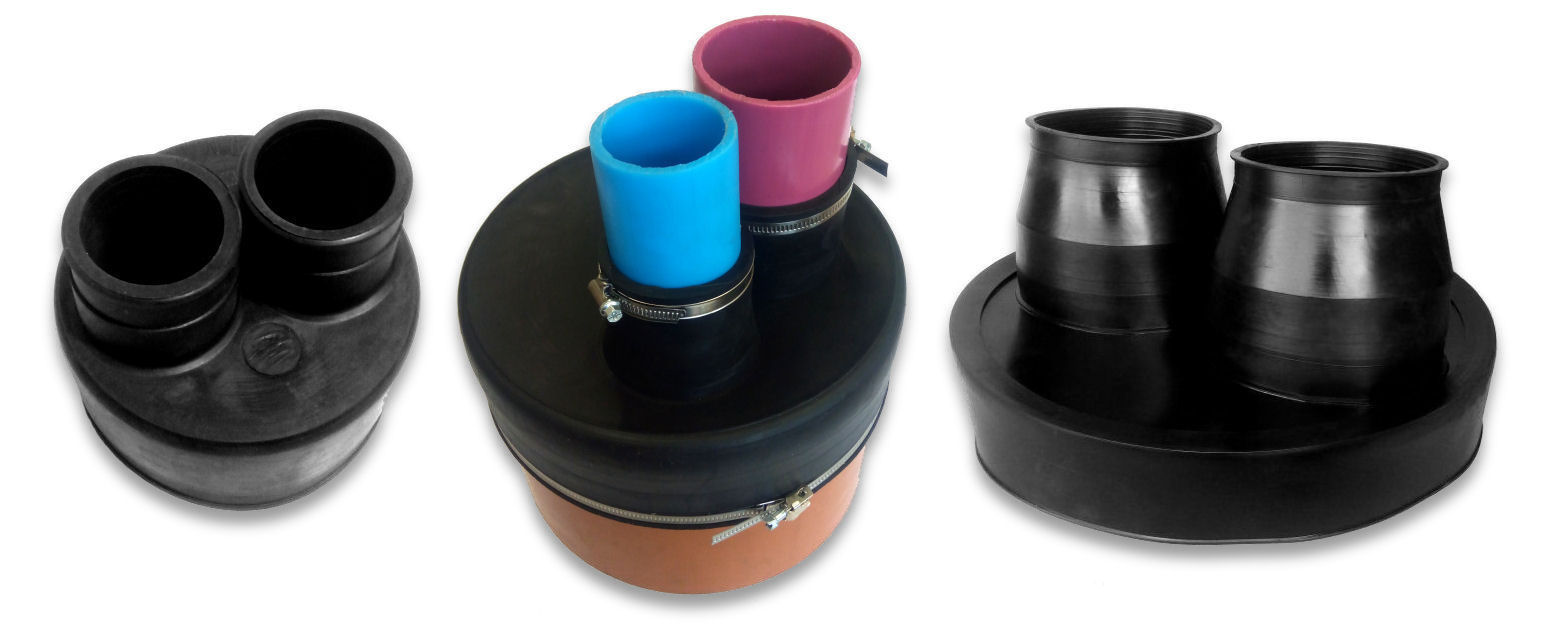

Special (multi-pipe) end seals

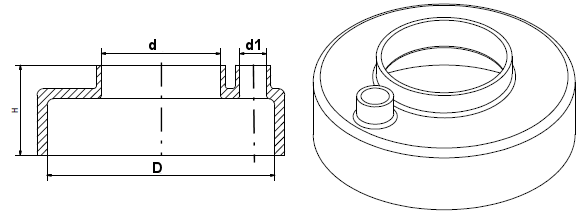

Cross section and view of end seal for multi-pipe culverts:

Special end seals selection chart:

	Nominal operational values of end seal in milimetres (+/- 5% due to the elasticity of seal)
Symbol	d[mm]	d1[mm]	D[mm]
100/40+40	40	40	100
250X/75+63	75	63	250
250/125+40	125	40	273
323/168+40	168	40	323
X - matching with PVC, PE pipes Other dimensions on request

Closed end seals

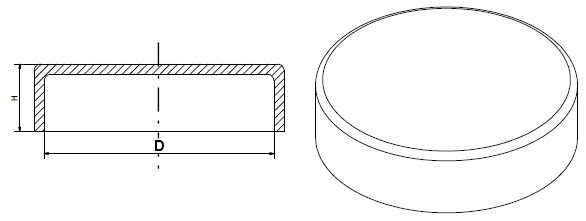

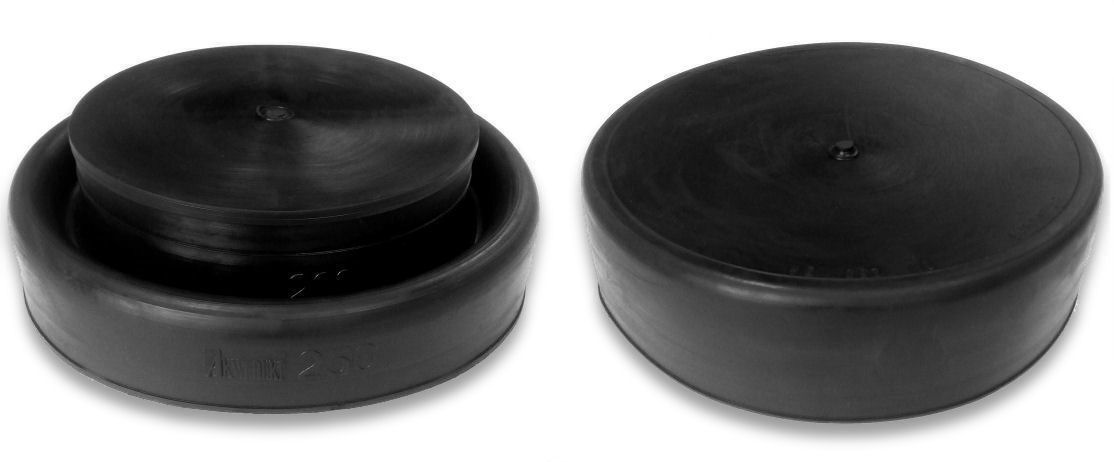

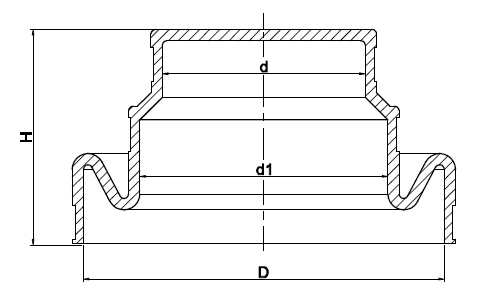

Cross section and view of closed seal (end cap):

Closed end seals selection chart:

	Nominal operational values of end seal in milimetres (+/- 5% due to the elasticity of seal)
Symbol	d[mm]	d1[mm]	D[mm]
80Z/100/150	80	110	160
110Z/180	110		180
150Z/200	160		219
200Z/250	219		273
250 korek			273
250Z/350	273		350
323 korek			323
350Z/500	350		508
400 korek			406
400Z/500	400		508
Other dimensions on request

Installation comprises the mounting of the seal on the casing pipe and tightening of a stainless steel band clamp over the seal.

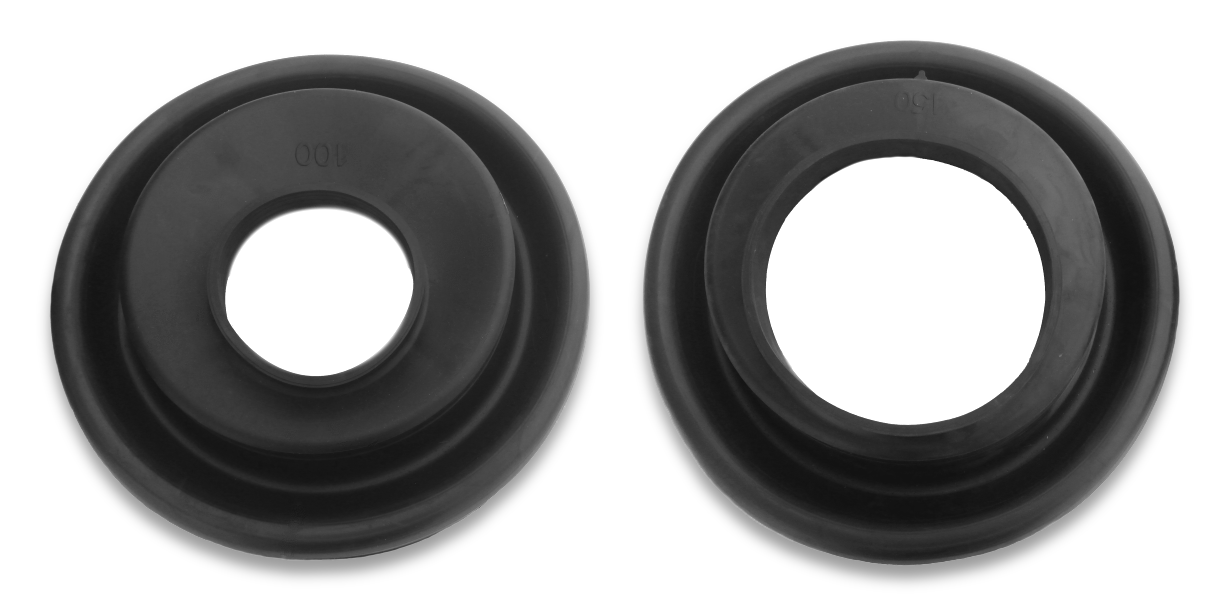

Eccentric end seals

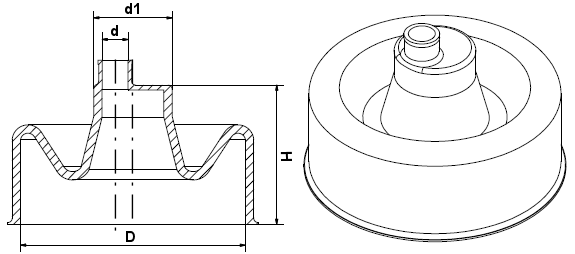

Cross section and view of eccentric end seal:

Eccentric end seals selection chart:

	Nominal operational values of end seal in milimetres (+/- 5% due to the elasticity of seal)
Symbol	d[mm]	d1[mm]	D[mm]
100/300	100	200	300
150/300	150	200	300
Other dimensions on request

End seals type CU

CU end seals are used in large-diameter pipes and in the case of unusual diameters of carrier and casing pipes. These end seals are designed for sealing installations routed in casings or construction partitions. They are used in non-pressure conditions (up to 2 meters of water column height) and protect against migration of water, mud and gas along the pipeline. The assembly consists in fitting an end seal on the casing, displacing the carrier pipe. The tightness is achieved by tightening the stainless steel bands.

Dimensions [mm]
Carrier pipe DN[mm]	Casing pipe diameter DN[mm]
400	600
500	800
600	900
700	1000
800	1200
900	1300
1000	1400
1100	1600
1200	1700
Other end seals available on request

Custom end seals can be produced at the request of the client, depending on project-specific needs.
